Hi Flemming,

according to Jiri's explanations we need to swap G2 and G3 signal. Could you provide some information were exactly these signals are routed on the top of the PCB?

Furthermore I have questions regarding JP7(A) and JP8(A). I did not find any information which pin is PIN1 at these jumpers.
Since I do not want do damage something I would like to know if this config is correct:

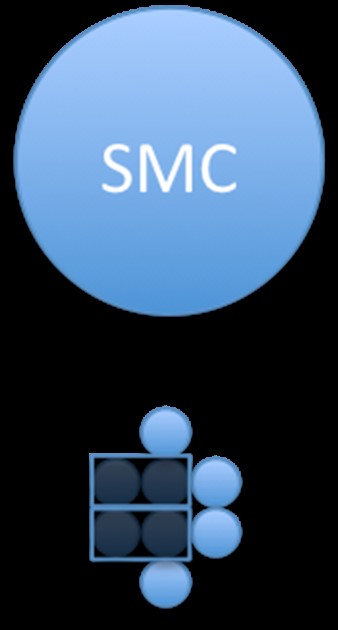

I assume 3.3V for FMC and SEIC is the correct setting. Does the setting drawn in the picture represent this?



Best Regards,
Jan

PS: The links for "Sundance Software for the EMC²-DP" and "Sundance Firmware for the EMC²-DP" at http://www.sundance.technology/som-cari ... s/emc2-dp/ do not point to a file.

Hi Jan,

As soon as you have access to the forum you will read this.

Here you will find the documentation of the board, the latest version of the Starter's guide gives you that information.
http://support.tulipp.eu/viewtopic.php?f=5&t=2
In case you dont have access to this, here is the guide:


If you need more information about it (schematics in detail) just ask.

Regards,

Timoteo
